Specify the screen form, slot opening, material and mounting details. Start with a new equipment drawing or an existing screen to replace.
Discuss a custom screen →
Custom stainless steel wedge wire screens & OEM supply.
EXPLORE SCREEN PRODUCTS ›
Insights
1 / 3
Find out more →
Why profile-wire screens?

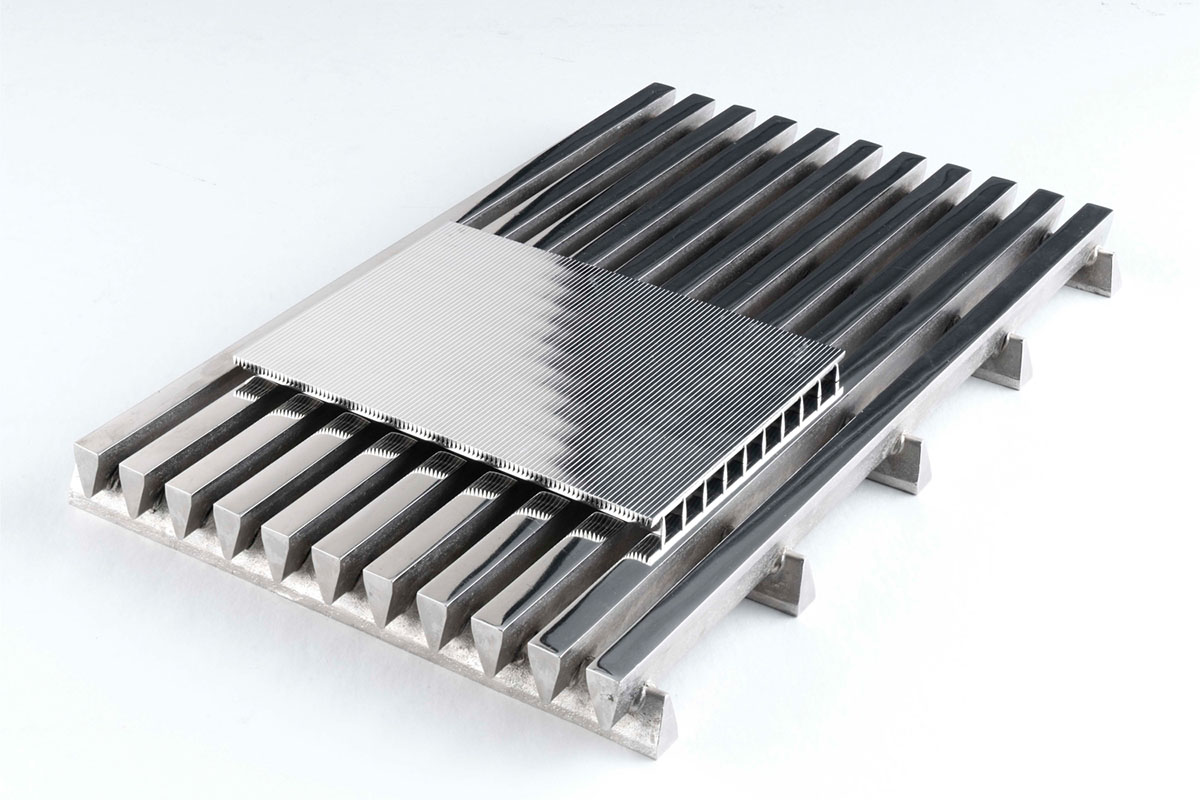

The V-shaped wire creates a narrow opening at the screening face and a widening passage behind it. Welded support rods hold the profile wires in place.
Understand slots, profiles & open area →
Screening components for water, food, minerals and industrial filtration.
Explore applications →PRODUCT RANGE
Find the right wedge wire screen.
Choose a screen form, then share your dimensions, material and process requirements.

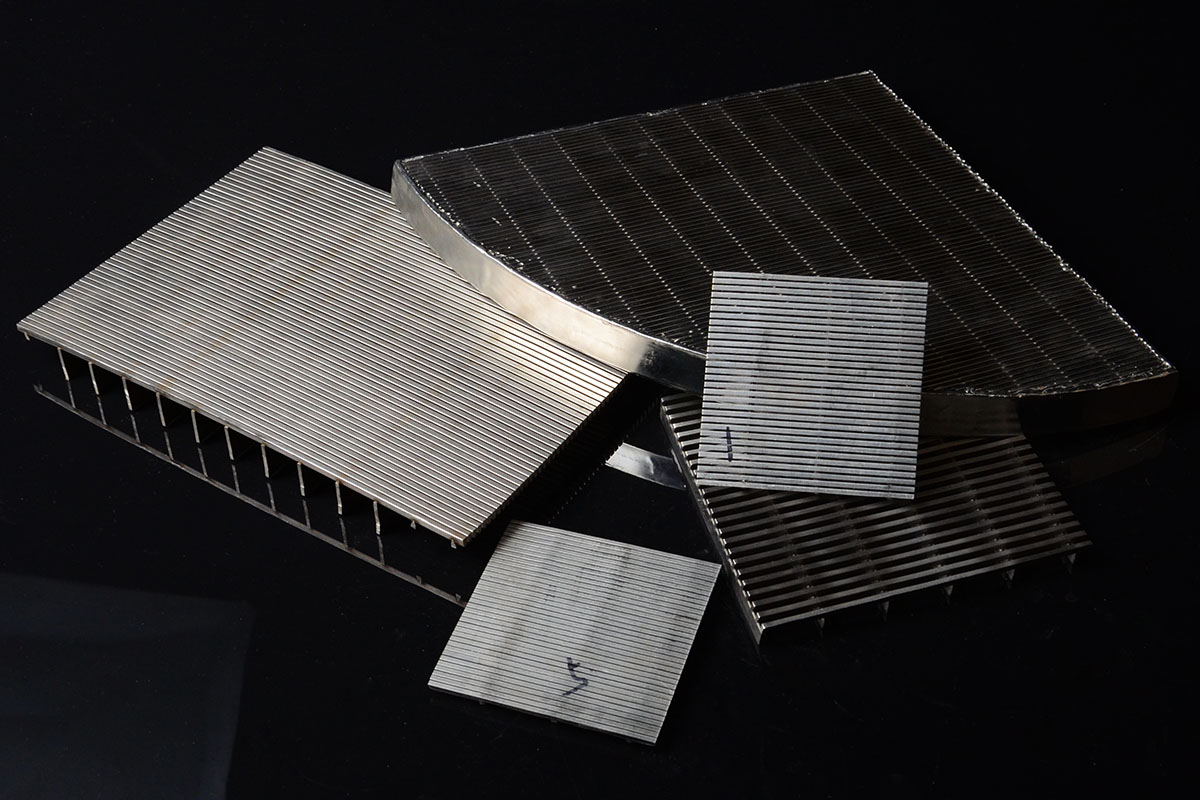

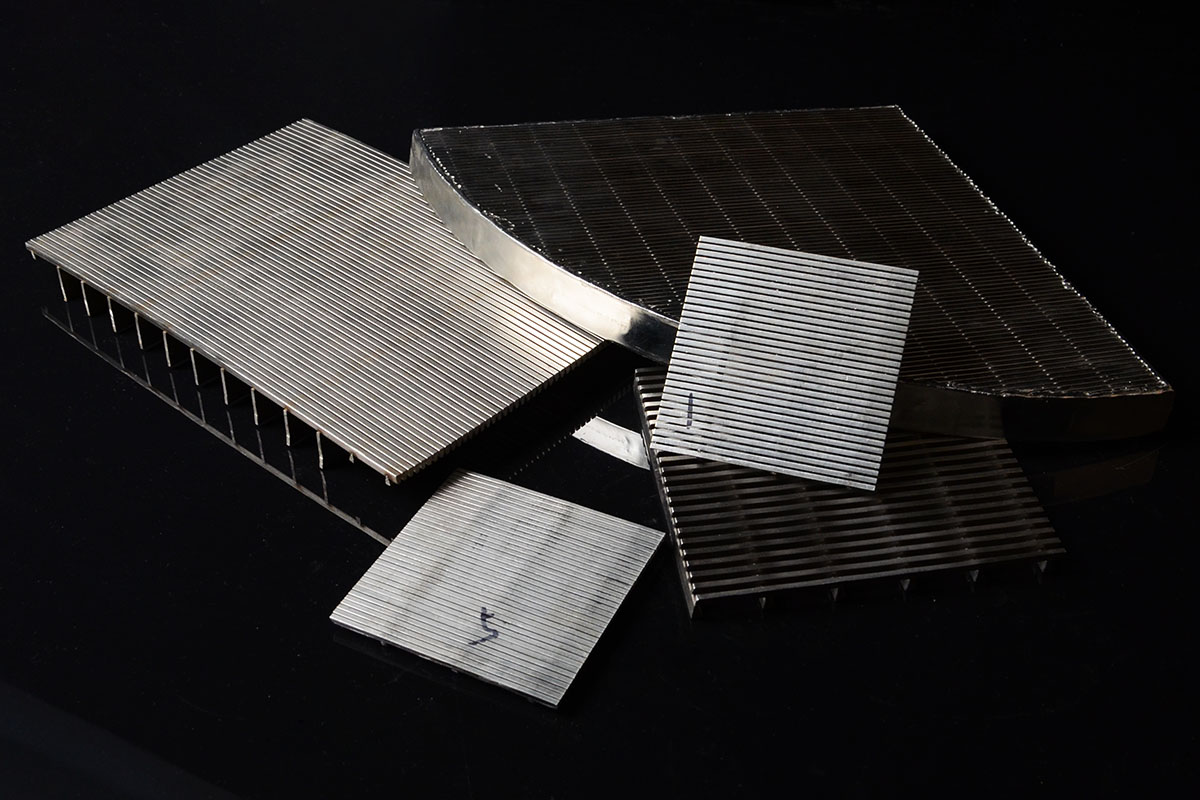

Wedge Wire Screen Panels
Flat or formed V-wire panels for filtering, drainage and equipment integration. Available material options include 304, 316 and duplex 2205 stainless steel.
Length & width · Slot opening · Frame
View specifications

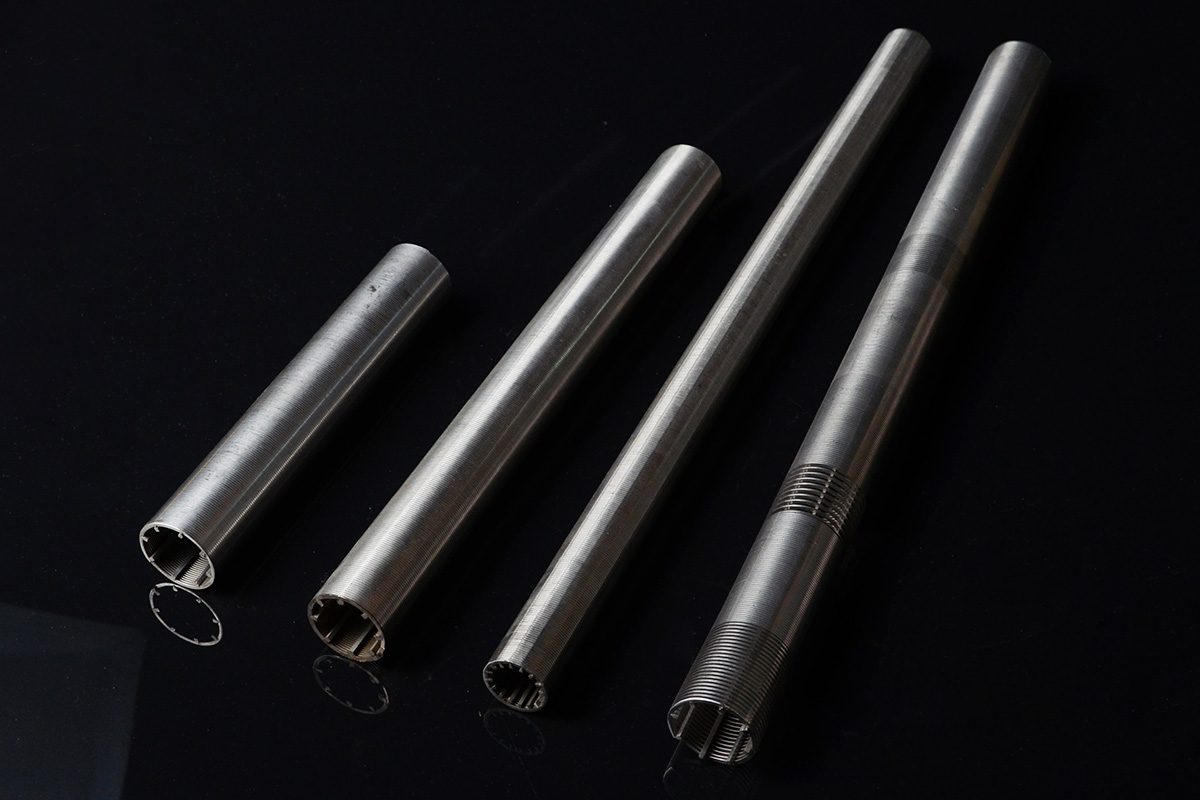

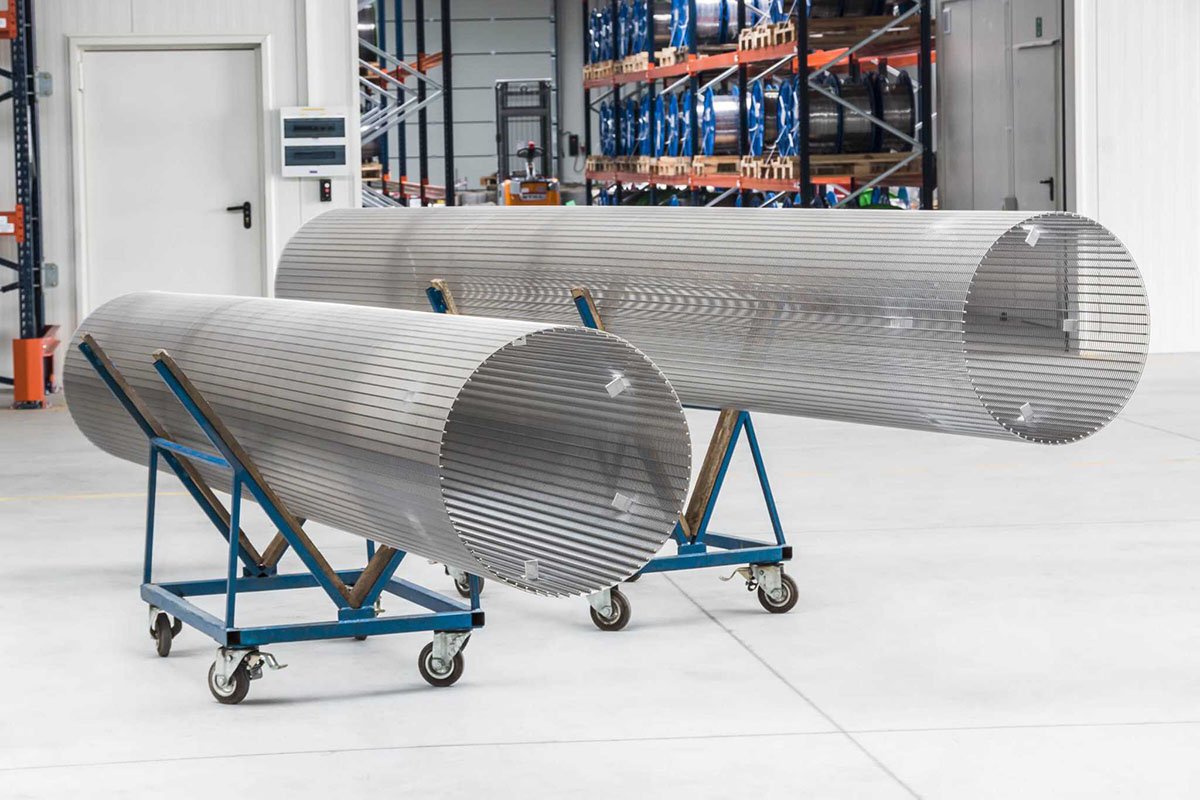

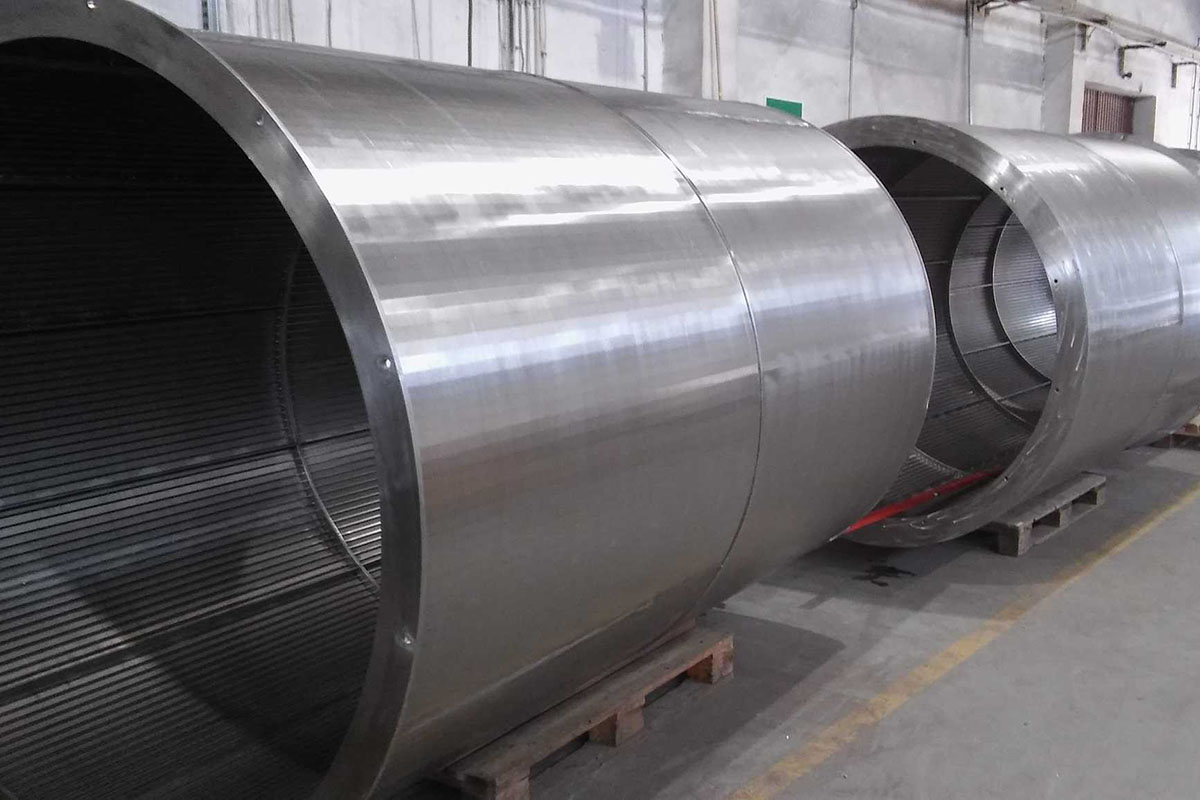

Wedge Wire Cylinders & Tubes
Welded V-wire tubes for filters and strainers. Define the active length, end fittings and inside-to-outside or outside-to-inside flow.
Diameter & length · Flow direction · Ends
View specifications

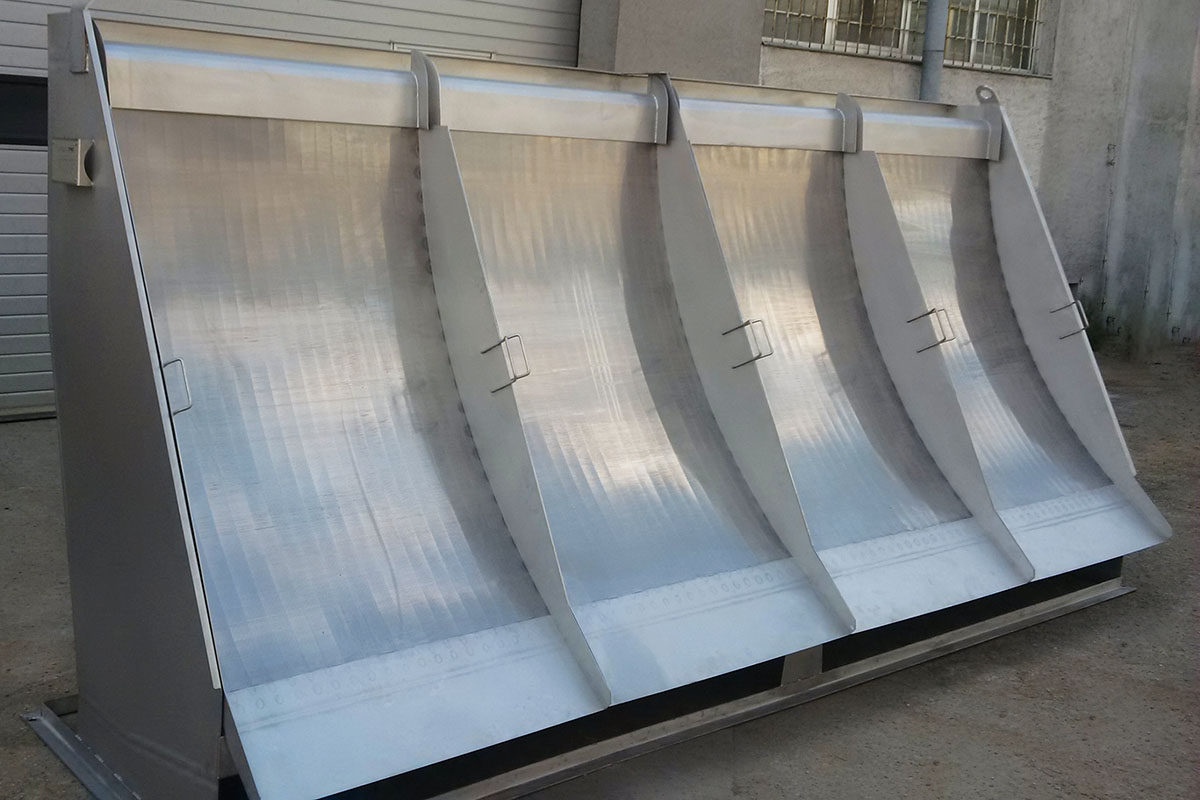

Sieve Bend Screens
Static curved screens for solid-liquid separation and dewatering. Configurations include 45° and 60° arcs, with radius and mounting defined for the equipment.
Arc & radius · Slot opening · Mounting
View specifications

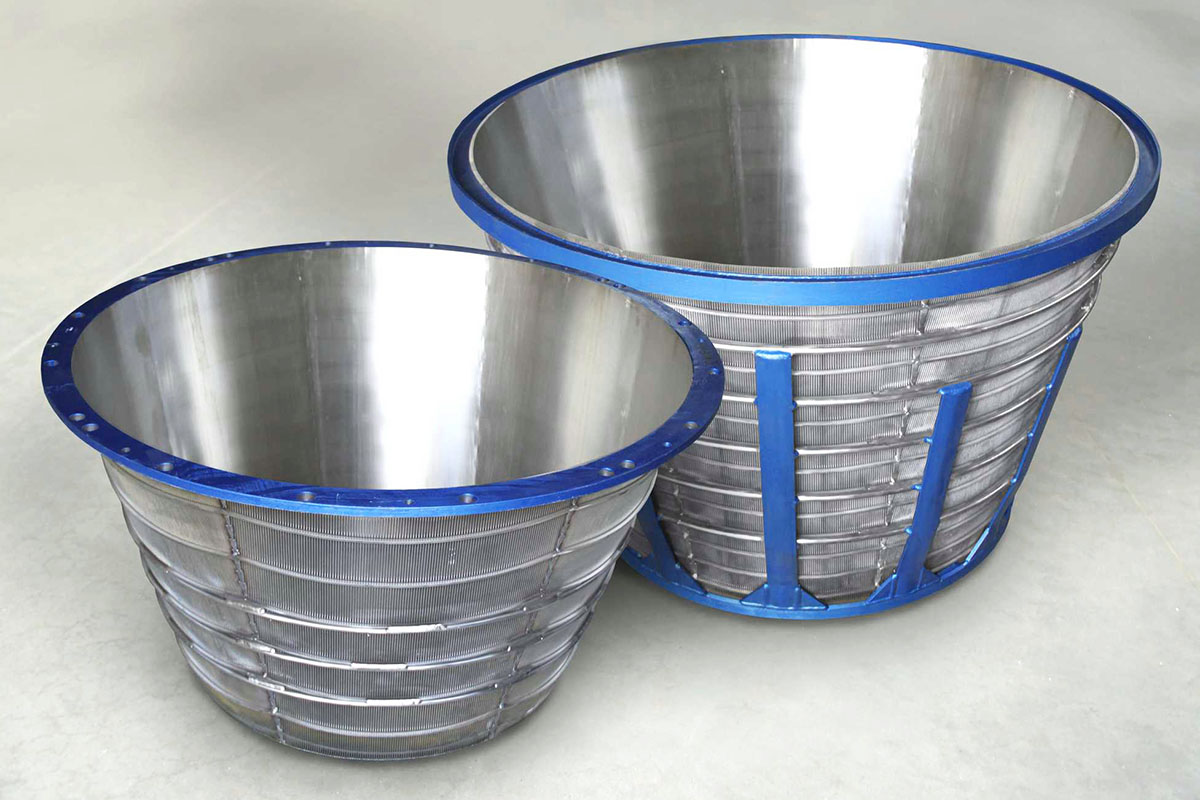

Wedge Wire Screen Baskets
Conical and cylindrical screening baskets for process separation and centrifugal equipment. Rotating-duty requirements need an equipment-specific review.
Diameter & height · Profile · Connections
View specifications

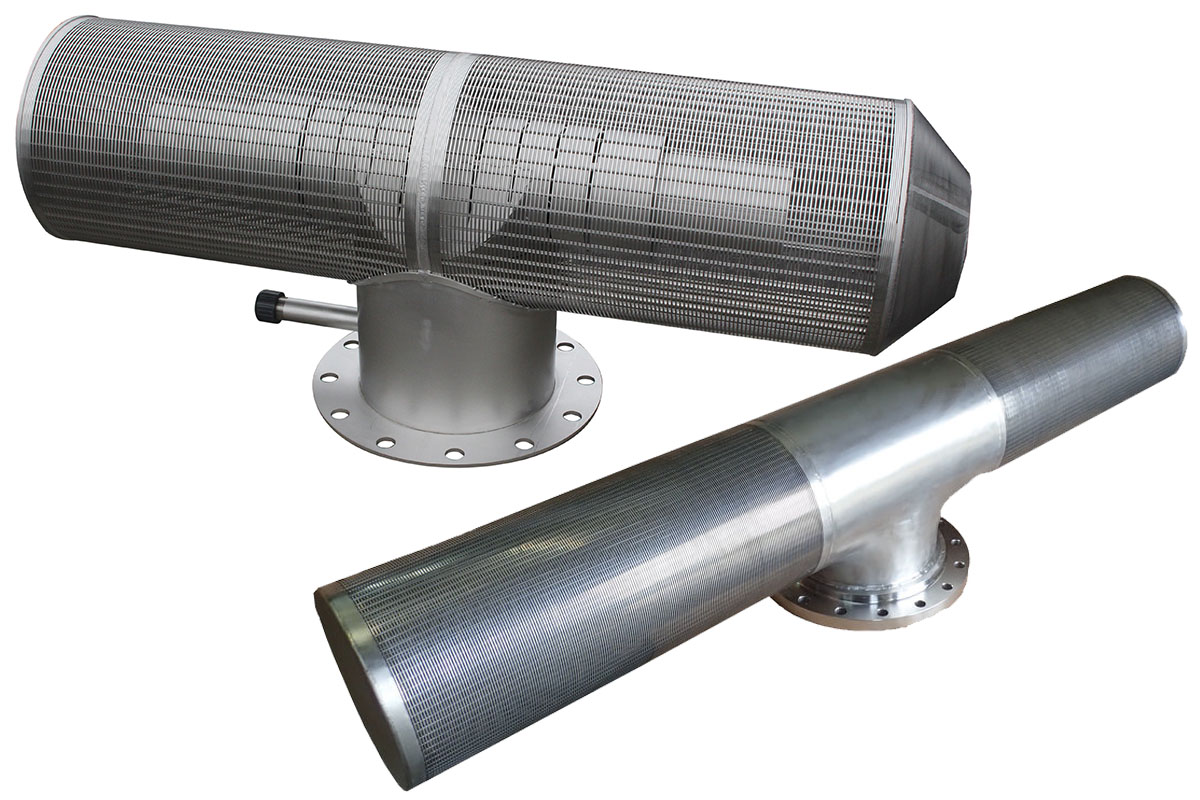

Water Intake Screens
Intake screens for river, sea and process-water projects. Forms include T-shaped, drum, flat and half-barrel configurations.
Flow requirement · Screen area · Connection
View specifications

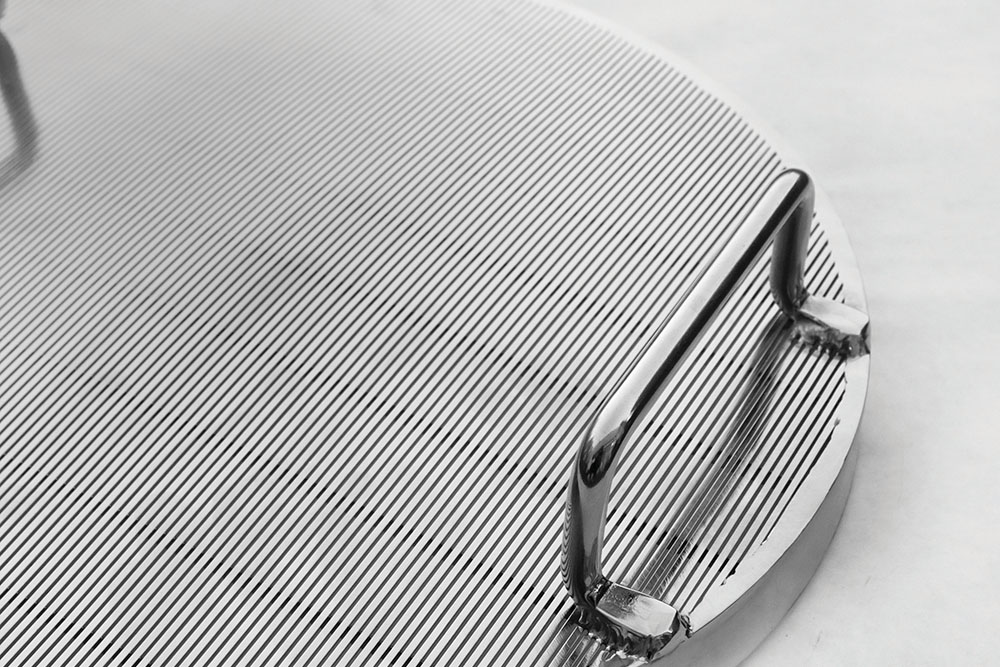

Mash Tun False Bottoms
Stainless steel slotted sections that support the grain bed while wort passes through. Specify vessel fit, segment joints, supports and surface finish.
Vessel dimensions · Sections · Supports
View specificationsNeed a filter strainer or a special shape?
MATERIALS & CONSTRUCTION
Screen specifications at a glance.
Choose the material and screen form, then define the slot, supports and interfaces for your process.
| Specification | Options & scope |
|---|---|
| Construction | V-shaped profile wire welded to support rods, forming continuous screening slots. |
| Stainless steel | 304 / 304L, 316 / 316L and duplex 2205 options. Specify the required grade and service conditions. |
| Specialty materials | 904L, Alloy 20, Hastelloy and Monel options for selected designs. State the exact alloy grade in your enquiry. |
| Fine-slot cylinders | Fine-slot options down to 0.02 mm (20 μm) on selected cylinder designs. Feasibility depends on the profile, diameter and duty; slot tolerance is agreed separately. |
| Curved screens | 45° / 60° sieve-bend configurations and drawing-defined arcs. Provide width, radius, feed direction and mounting details. |
| Intake forms | T-shaped, drum, flat and half-barrel screen configurations, selected around the intake layout and design flow. |
| Fit & connections | Panel frames, tube ends, basket rims, vessel segments and mounting interfaces specified to the equipment drawing. |
Slot opening is a physical dimension, not a guaranteed particle-removal rating. Material, tolerances, loading, quantity and delivery terms are confirmed for the individual order. Overview updated .
Prepare a complete screen specification →MADE TOYOUR
DRAWINGForm · Slot · Material · Fit
DRAWINGForm · Slot · Material · Fit
New equipment or replacement screen: start with the dimensions and conditions that matter to your process.
ENGINEERED SCREEN COMPONENTS
Flat panels, cylinders, sieve bends and baskets for equipment integration.
Built for industrial buyers around the world.
Tell us your destination and packing requirements when requesting a quotation.
Quality.
Specify the material record, slot inspection and critical fit dimensions required for your order.
Quality & documentation →APPLICATIONS
A screen for your process.
Match the screen geometry and construction to the separation duty and equipment.
Water & Wastewater
Intake screening and wastewater separation. Start with design flow, debris, water chemistry and effective screening area.
Intake screens & components →Food & Beverage
Mash and lauter tun false bottoms, plus process screens for food, starch and sugar separation. Define cleaning conditions and the required surface finish.
False bottoms & screen sections →Mining & Minerals
Sieve bends and baskets for dewatering and mineral separation. Provide solids loading, abrasion conditions and the feed arrangement.
Sieve bends & panels →Industrial Filtration

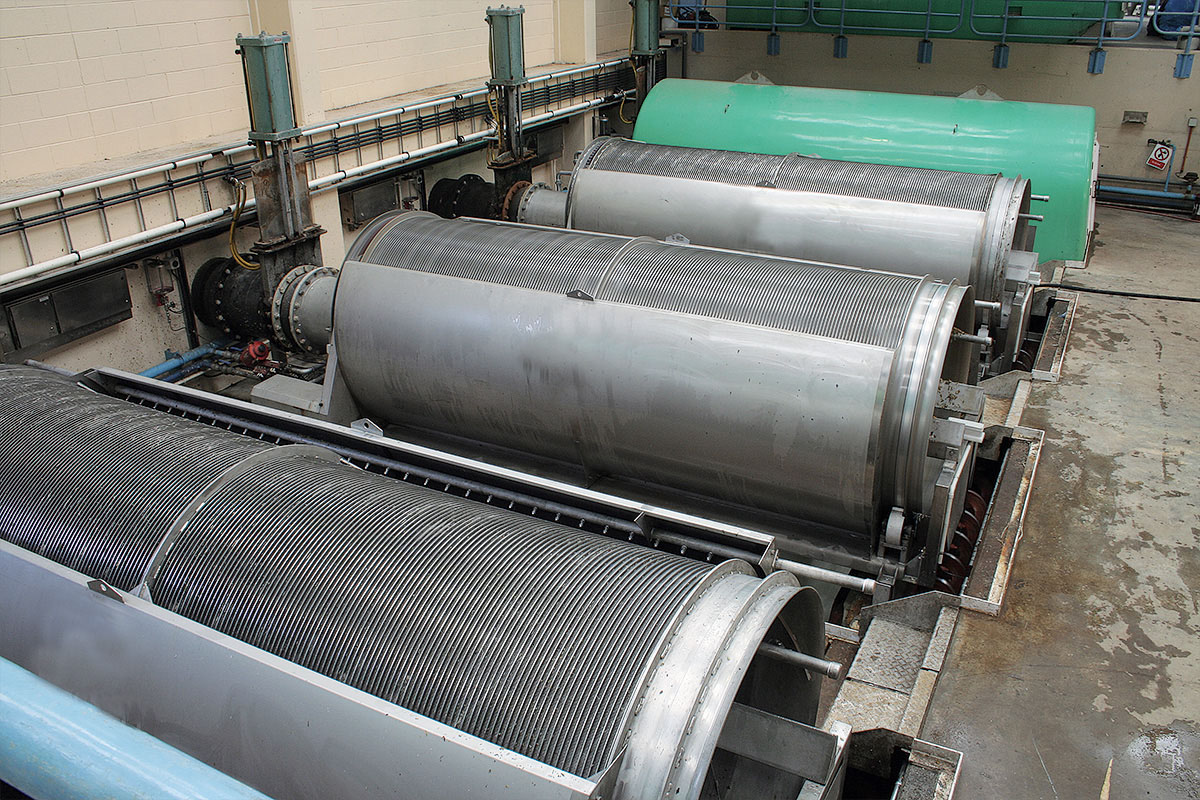

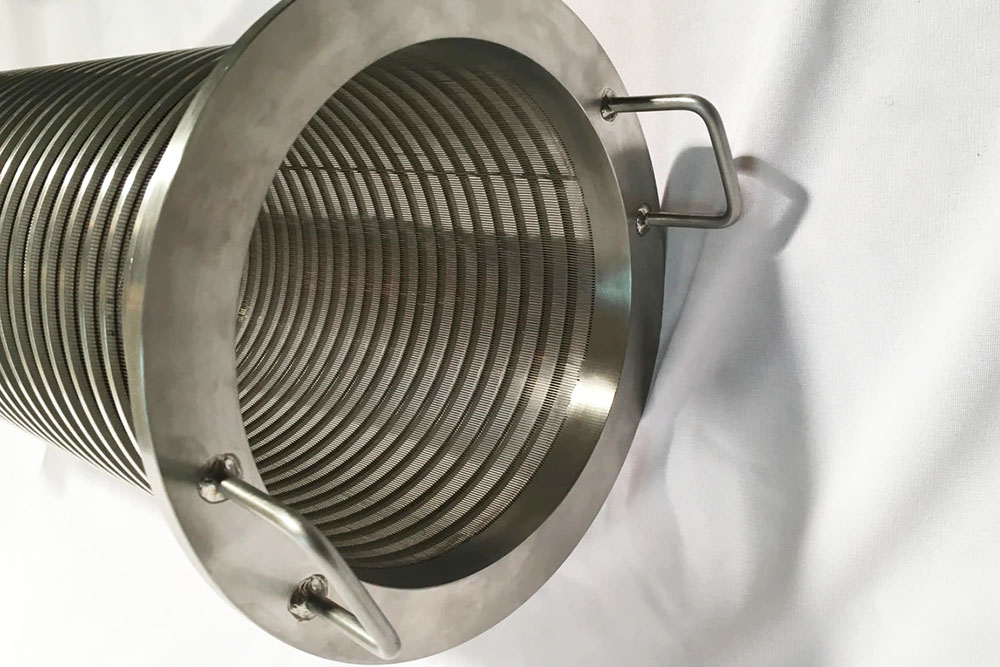

Cylinders, strainers and custom panels for industrial filters and OEM equipment. Specify the medium, temperature, pressure direction and mating interfaces.
Cylinders & filter components →ABOUT WEDGE WIRE WORKS
A dedicated wedge wire screen team within KUNYU Group.
Wedge Wire Works is a dedicated team within KUNYU Group, working with specialist manufacturing partners to supply custom wedge wire screens for OEM and industrial applications.
Our team coordinates specification, quotation and export requirements for OEMs, distributors and industrial buyers. Production is arranged with specialist manufacturing partners; the agreed drawing, material and acceptance requirements define each order.
Meet the team & how we work →CUSTOM & REPLACEMENT SCREENS
Have a drawing—or a screen to replace?
Start with the information you have. These details help define a practical screen specification:
- Geometry: dimensions, screen form and mounting details.
- Screen surface: slot opening, wire profile and flow direction.
- Service conditions: medium, temperature, flow and differential pressure.
- Order: material, quantity, inspection needs and destination.
Download the RFQ checklist →
ENGINEER YOUR ENQUIRY
Technical answers before you order.
Use the drawing checklist, compare screen geometry and record a replacement accurately.
01 · SPECIFY
What belongs on a screen drawing?
Geometry, nominal slot, tolerance, alloy, flow direction, mounting and acceptance requirements.
Read the specification guide → 02 · COMPARESlot size is only part of the picture.
Understand wire width, pitch and theoretical open area, with a worked calculation and its limits.
Explore slot & open area → 03 · REPLACEMeasure the fit and the duty.
Record interfaces, active screening dimensions, orientation and wear before replacing a component.
Use the replacement checklist →BEFORE YOU ENQUIRE
Screen specification questions.
Who operates Wedge Wire Works?
Wedge Wire Works is a dedicated wedge wire screen team within KUNYU Group, operated by Zhejiang Kunyu Wire Mesh Co., Ltd. The team works with specialist manufacturing partners and coordinates product specification, quotations and export requirements.
What is a wedge wire screen?
A wedge wire screen uses profile wires attached to support rods to form continuous slots. It is used for screening, filtration and separation. Screen geometry, slot opening and support structure are selected for the intended duty.
What should I send for a quotation?
Share the screen type, dimensions, material, slot opening, quantity and destination, if known. A drawing or clear photos of an existing screen help identify mounting details. State any critical operating conditions or inspection requirements.
Can you review a replacement screen requirement?
Yes. Send the available drawing, measured dimensions and photos, together with the application and any problems with the existing screen. Fit, loading and operating requirements must be reviewed before a replacement specification is agreed.
How are material, tolerances and lead time confirmed?
Material grade, slot and dimensional tolerances, documentation, quantity and delivery schedule are confirmed for the specific quotation and order. A published product example does not define the limits for every screen configuration.
Which materials are available for wedge wire screens?
Material options include 304, 304L, 316 and 316L stainless steel, duplex 2205, and selected specialty alloys such as 904L, Alloy 20, Hastelloy and Monel. The exact grade and screen configuration are confirmed against the process medium, temperature and order requirements.
Can you supply fine-slot wedge wire cylinders?
Selected cylinder designs have fine-slot options down to 0.02 mm, equivalent to 20 μm. Feasibility depends on the wire profile, cylinder dimensions and operating duty. This is a nominal physical opening, not a guaranteed particle-removal rating; the required slot tolerance must be agreed separately.
How is wedge wire screen open area calculated?
For uniform parallel slots, theoretical surface open area (%) = slot opening ÷ (slot opening + wire surface width) × 100. Using illustrative inputs of a 0.50 mm slot and 1.50 mm wire width gives 25.0%. This excludes frames, support obstructions and fouling, and is not a flow-capacity guarantee.
